Integrate OceanBase MCP Server with Cursor

MCP (Model Context Protocol) is an open-source protocol introduced by Anthropic in November 2024. It allows large language models to interact with external tools or data sources. With MCP, you do not need to manually copy and execute the output of large language models. Instead, the large language model can directly instruct tools to perform specific actions.

MCP Server enables large language models to interact with OceanBase Database through the MCP protocol and execute SQL statements. With the right client, you can quickly build project prototypes. The server has been open-sourced on GitHub.

Cursor is an AI-powered code editor that supports multiple operating systems, including Windows, macOS, and Linux.

This topic demonstrates how to integrate Cursor with OceanBase MCP Server to quickly build a backend application.

Prerequisites

• You have deployed seekdb.

• You have installed Python 3.11 or later and the corresponding pip. If your machine has an older version of Python, you can use Miniconda to create a new environment with Python 3.11 or above. For more information, see Miniconda installation guide.

• You have installed Git based on your operating system.

• You have installed the Python package manager uv. After the installation, run the uv --version command to verify whether the installation is successful:

  pip install uv
  uv --version

• You have downloaded Cursor and installed the version that matches your operating system. When you use Cursor for the first time, you need to register a new account or log in with an existing one. After logging in, you can create a new project or open an existing project.

Step 1: Obtain the database connection information

Contact your seekdb deployment engineer or administrator to obtain the database connection string. For example:

obclient -h$host -P$port -u$user_name -p$password -D$database_name

Parameters:

• $host: The IP address for connecting to seekdb.

• $port: The port number for connecting to seekdb. Default is 2881.

• $database_name: The name of the database to access.

  tip

  The connected user must have CREATE, INSERT, DROP, and SELECT privileges on the database.

• $user_name: The username for connecting to the database.

• $password: The password for the account.

Step 2: Configure the OceanBase MCP Server

Clone the OceanBase MCP Server repository

Run the following command to download the source code to your local device:

git clone https://github.com/oceanbase/mcp-oceanbase.git

Go to the source code directory:

cd mcp-oceanbase

Install dependencies

Run the following command in the mcp-oceanbase directory to create a virtual environment and install dependencies:

uv venv
source .venv/bin/activate
uv pip install .

Create a working directory for the Cursor client

Manually create a working directory (such as cursor) for the Cursor client and open it with Cursor. The files generated by Cursor will be stored in this directory.

Add and configure the OceanBase MCP Server

1. Use Cursor V2.0.64 as an example. Click the Open Settings icon in the upper-right corner, select Tools & MCP, and click New MCP Server.

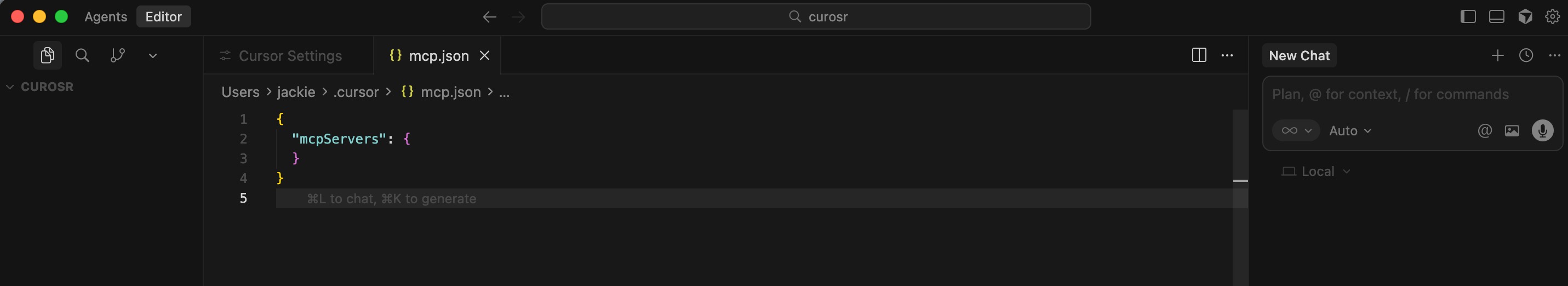

2. Edit the mcp.json configuration file.



   Replace path/to/your/mcp-oceanbase/src/oceanbase_mcp_server with the absolute path of the oceanbase_mcp_server folder. Replace OB_HOST, OB_PORT, OB_USER, OB_PASSWORD, and OB_DATABASE with the corresponding information of your database:

   {
   "mcpServers": {
       "oceanbase": {
       "command": "uv",
       "args": [
           "--directory",
           "/path/to/your/mcp-oceanbase/src/oceanbase_mcp_server",
           "run",
           "oceanbase_mcp_server"
       ],
       "env": {
           "OB_HOST": "***",
           "OB_PORT": "***",
           "OB_USER": "***",
           "OB_PASSWORD": "***",
           "OB_DATABASE": "***"
       }
       }
   }
   }

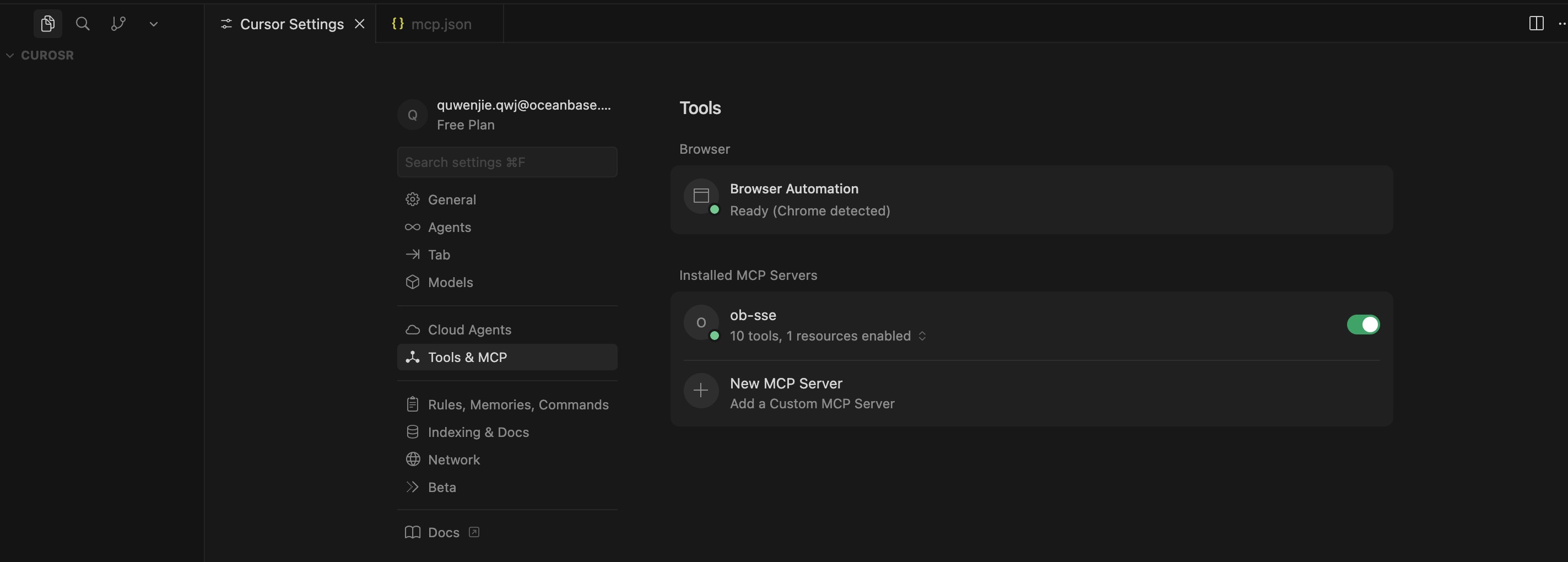

3. If the configuration is successful, the MCP Server is displayed in ready status.



Test the MCP Server

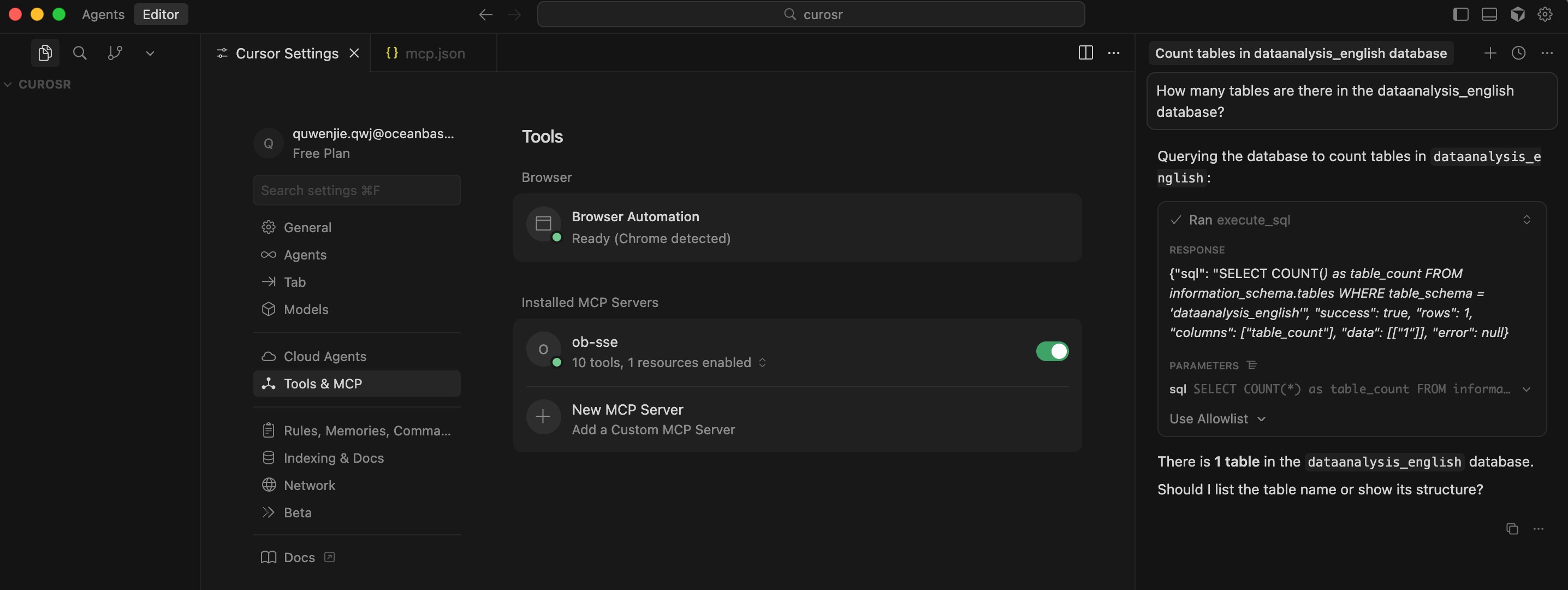

1. In the chat dialog box, enter the prompt: How many tables are there in the dataanalysis_english database?. The Cursor client will display the SQL statement to be executed. Confirm that it is correct and click the Run button to execute the query. The Cursor client will display all the table names in the dataanalysis_english database, indicating that we have successfully connected to seekdb.



Use FastAPI to quickly create a RESTful API project

You can use FastAPI to quickly create a RESTful API project. FastAPI is a Python web framework for building RESTful APIs.

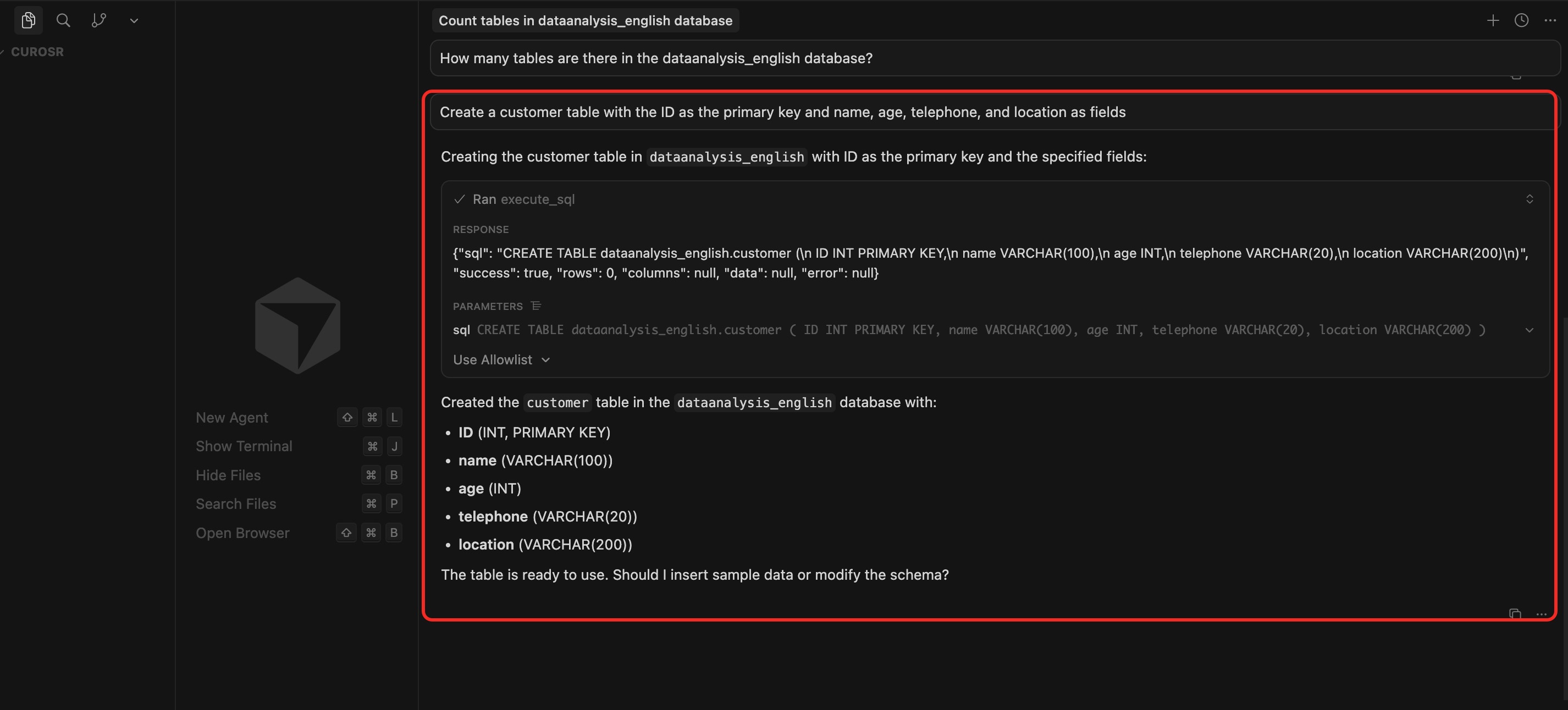

1. Create a customer table

   In the dialog box, enter the prompt: Create a customer table with the ID as the primary key and name, age, telephone, and location as fields, confirm the SQL statement, and click Run to execute the query.

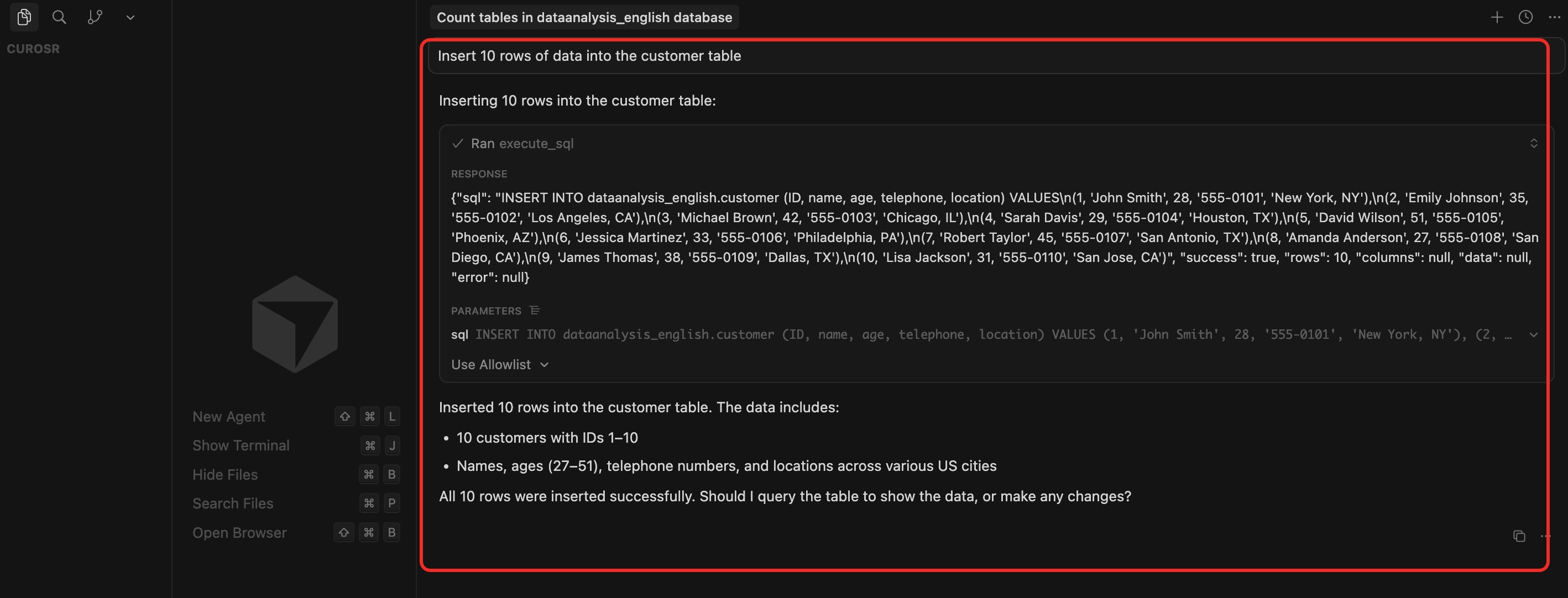

2. Insert test data

   In the dialog box, enter the prompt: Insert 10 rows of data into the customer table, confirm the SQL statement, and click Run to execute the query. After the data is inserted, a message will be displayed: Inserted 10 rows into the customer table. The data includes....

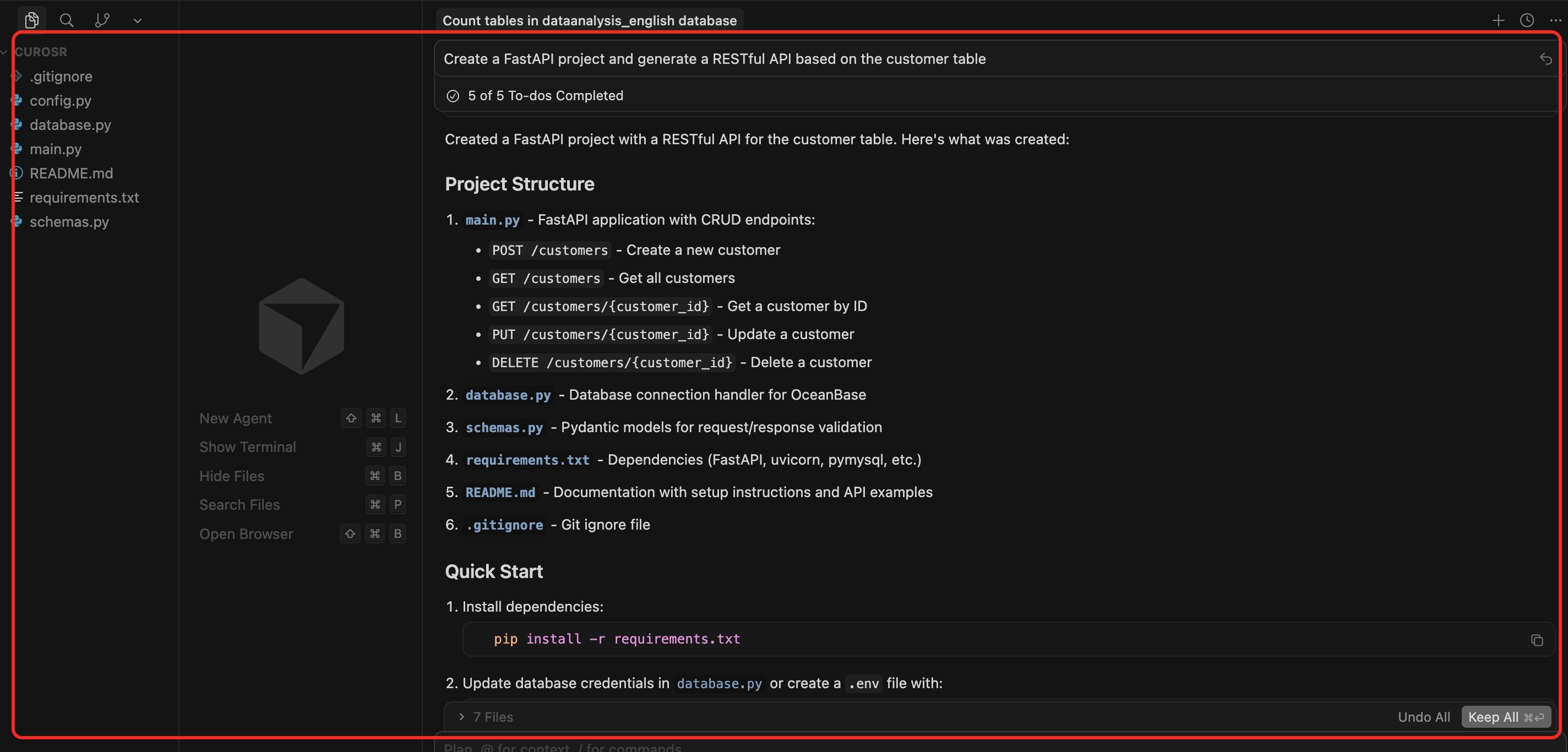

3. Create a FastAPI project

   In the dialog box, enter the prompt: Create a FastAPI project and generate a RESTful API based on the customer table, confirm the SQL statement, and click Run to execute the query.



   This step will automatically generate necessary files. It is recommended to select Accept All for the first use, because the content of the files generated by AI may be uncertain, and you can adjust them as needed later.

4. Create a virtual environment and install dependencies

   Execute the following command to use the uv package manager to create a virtual environment and install the dependencies in the current directory:

   uv venv
   source .venv/bin/activate
   uv pip install -r requirements.txt

5. Start the FastAPI project

   Execute the following command to start the FastAPI project:

   uvicorn main:app --reload

6. View the data in the table

   Run the following command in the command line or use other request tools to view the data in the table:

   curl http://127.0.0.1:8000/customers

   The return result is as follows:

   [{"ID":1,"name":"John Smith","age":28,"telephone":"555-0101","location":"New York, NY"},{"ID":2,"name":"Emily Johnson","age":35,"telephone":"555-0102","location":"Los Angeles, CA"},{"ID":3,"name":"Michael Brown","age":42,"telephone":"555-0103","location":"Chicago, IL"},{"ID":4,"name":"Sarah Davis","age":29,"telephone":"555-0104","location":"Houston, TX"},{"ID":5,"name":"David Wilson","age":51,"telephone":"555-0105","location":"Phoenix, AZ"},{"ID":6,"name":"Jessica Martinez","age":33,"telephone":"555-0106","location":"Philadelphia, PA"},{"ID":7,"name":"Robert Taylor","age":45,"telephone":"555-0107","location":"San Antonio, TX"},{"ID":8,"name":"Amanda Anderson","age":27,"telephone":"555-0108","location":"San Diego, CA"},{"ID":9,"name":"James Thomas","age":38,"telephone":"555-0109","location":"Dallas, TX"},{"ID":10,"name":"Lisa Jackson","age":31,"telephone":"555-0110","location":"San Jose, CA"}]

   You can see that the RESTful APIs for creating, deleting, updating, and querying data have been successfully generated:

   from fastapi import FastAPI, HTTPException, Depends
   from pydantic import BaseModel
   from typing import List
   from sqlalchemy import create_engine, Column, Integer, String
   from sqlalchemy.ext.declarative import declarative_base
   from sqlalchemy.orm import sessionmaker, Session

   # seekdb connection configuration (modify it as needed)
   DATABASE_URL = "mysql://***:***@***:***/***"

   engine = create_engine(DATABASE_URL, echo=True)
   SessionLocal = sessionmaker(autocommit=False, autoflush=False, bind=engine)
   Base = declarative_base()

   class Customer(Base):
       __tablename__ = "customer"
       id = Column(Integer, primary_key=True, index=True)
       name = Column(String(100))
       age = Column(Integer)
       telephone = Column(String(20))
       location = Column(String(100))

   class CustomerCreate(BaseModel):
       id: int
       name: str
       age: int
       telephone: str
       location: str

   class CustomerUpdate(BaseModel):
       name: str = None
       age: int = None
       telephone: str = None
       location: str = None

   class CustomerOut(BaseModel):
       id: int
       name: str
       age: int
       telephone: str
       location: str
       class Config:
           orm_mode = True

   def get_db():
       db = SessionLocal()
       try:
           yield db
       finally:
           db.close()

   app = FastAPI()

   @app.post("/customers/", response_model=CustomerOut)
   def create_customer(customer: CustomerCreate, db: Session = Depends(get_db)):
       db_customer = Customer(**customer.dict())
       db.add(db_customer)
       try:
           db.commit()
           db.refresh(db_customer)
       except Exception as e:
           db.rollback()
           raise HTTPException(status_code=400, detail=str(e))
       return db_customer

   @app.get("/customers/", response_model=List[CustomerOut])
   def read_customers(skip: int = 0, limit: int = 100, db: Session = Depends(get_db)):
       return db.query(Customer).offset(skip).limit(limit).all()

   @app.get("/customers/{customer_id}", response_model=CustomerOut)
   def read_customer(customer_id: int, db: Session = Depends(get_db)):
       customer = db.query(Customer).filter(Customer.id == customer_id).first()
       if customer is None:
           raise HTTPException(status_code=404, detail="Customer not found")
       return customer

   @app.put("/customers/{customer_id}", response_model=CustomerOut)
   def update_customer(customer_id: int, customer: CustomerUpdate, db: Session = Depends(get_db)):
       db_customer = db.query(Customer).filter(Customer.id == customer_id).first()
       if db_customer is None:
           raise HTTPException(status_code=404, detail="Customer not found")
       for var, value in vars(customer).items():
           if value is not None:
               setattr(db_customer, var, value)
       db.commit()
       db.refresh(db_customer)
       return db_customer

   @app.delete("/customers/{customer_id}")
   def delete_customer(customer_id: int, db: Session = Depends(get_db)):
       db_customer = db.query(Customer).filter(Customer.id == customer_id).first()
       if db_customer is None:
           raise HTTPException(status_code=404, detail="Customer not found")
       db.delete(db_customer)
       db.commit()
       return {"ok": True}
